Master Laser Marking Machines: A Comprehensive Guide

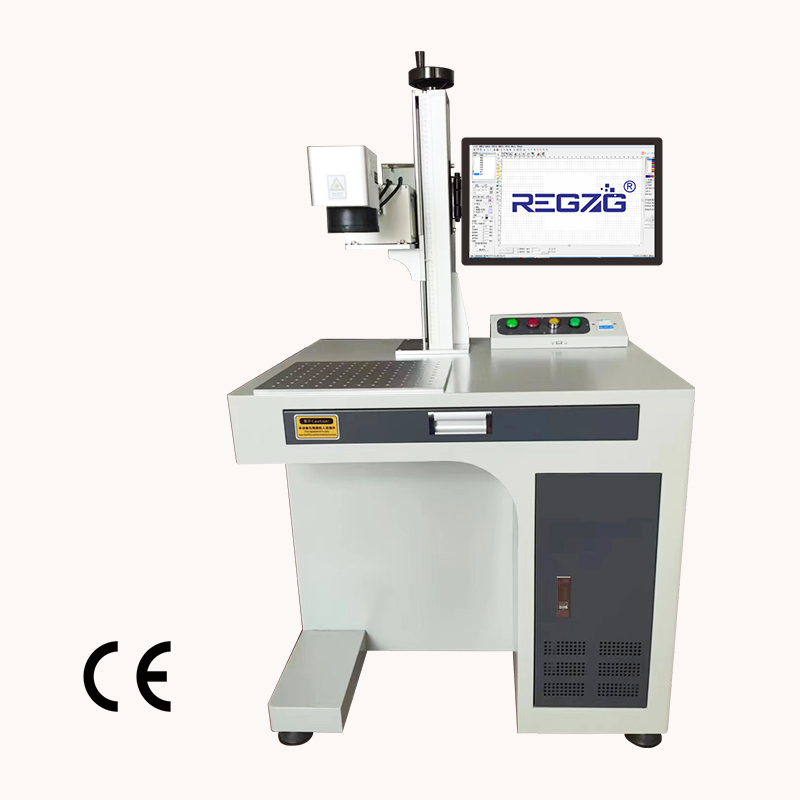

In modern manufacturing and daily life, laser marking machines have become an indispensable tool. They are widely used across a vast array of industries, from high - tech electronics manufacturing to the production of everyday consumer goods.
In the electronics industry, for example, laser marking machines are employed to engrave serial numbers, logos, and component identification codes on circuit boards, smartphones, and laptops. This not only provides a permanent and clear identification method but also contributes to product traceability and anti - counterfeiting. In the automotive industry, they are used to mark engine parts, vehicle identification numbers (VINs) on car bodies, ensuring accurate tracking throughout the production, sales, and after - sales service processes.
Even in our daily lives, we are surrounded by products marked by laser marking machines. Think about the brand logos on your jewelry, the serial numbers on your watches, or the text on your plastic household items. These marks are often made by laser marking machines, showing their versatility and importance.
If you've ever wondered how to operate this amazing piece of equipment, you've come to the right place. This article will provide you with a step - by - step guide on using a laser marking machine, whether you are a beginner in the manufacturing field or a DIY enthusiast looking to add personalized touches to your projects.
Laser marking machines are classified according to safety standards in two main aspects: laser safety and electrical safety.
In terms of laser safety, most industrial - grade laser marking machines fall into Class 4 according to the International Electrotechnical Commission (IEC) standard IEC 60825 - 1. Class 4 lasers are capable of producing hazardous diffuse reflections. They can cause severe eye and skin damage, and there is also a risk of fire. For example, a fiber - laser - based marking machine with a high - power output usually belongs to this category. The high - energy laser beam emitted by Class 4 laser marking machines can penetrate the eye's cornea and lens, directly affecting the retina, potentially leading to permanent vision loss.
Regarding electrical safety, laser marking machines should comply with relevant electrical safety standards, such as meeting the requirements for grounding, insulation resistance, and over - current protection. They are typically designed to ensure that in normal operating conditions, the risk of electric shock to the operator is minimized. However, improper installation or damage to the electrical components can still pose an electrical hazard.
• Wear Protective Equipment: Always wear appropriate laser - safety goggles. These goggles are designed to filter out the specific wavelength of the laser used in the marking machine. For example, if your laser marking machine operates at a wavelength of 1064 nm (common in fiber laser marking machines), the goggles should be specifically rated to block this wavelength. Additionally, wear protective gloves to prevent direct skin contact with the laser beam in case of accidental exposure. Long - sleeved clothing is also recommended to provide more coverage for your skin.
• Avoid Direct Eye Exposure: Never look directly into the laser beam, whether it is a direct beam, a specularly reflected beam (from a smooth surface like a mirror or highly polished metal), or a diffusely reflected beam. Even a brief glance at a high - power laser beam can cause irreversible damage to your eyes. In the work area, make sure that there are no reflective objects in the path of the laser beam that could direct the beam towards your eyes.
• Keep the Work Area Clear: Ensure that the area around the laser marking machine is free of flammable materials such as paper, cloth, and plastic. Laser beams can ignite these materials, leading to a fire. Also, do not place any objects that are not part of the marking process in the laser's path. For example, do not leave tools or personal items on the worktable where they could be hit by the laser beam.
• Prohibit Unauthorized Operation: Only trained and authorized personnel should operate the laser marking machine. The operator should be familiar with the equipment's operation manual, safety features, and emergency procedures. Unauthorized personnel may not be aware of the potential risks and could cause accidents.
• Check the Equipment Regularly: Regularly inspect the laser marking machine for any signs of damage, such as cracks in the laser housing, loose electrical connections, or misaligned optical components. If any issues are detected, stop using the machine immediately and have it repaired by a qualified technician.
• Ventilation: When operating the laser marking machine, especially when marking materials that may produce fumes or smoke (such as plastics or coated metals), ensure that the work area has proper ventilation. Fumes from some materials can be harmful if inhaled, and good ventilation helps to remove these pollutants from the air.
Once you receive the laser marking machine, the first step is unpacking. Carefully open the packaging using appropriate tools, such as a box cutter, being cautious not to damage the machine or its components.
After unpacking, conduct a thorough inspection. Check the main body of the laser marking machine for any visible scratches, dents, or cracks. Verify that all the parts listed in the user manual are present. This usually includes the laser source, the control panel, the marking head, the worktable, and any accessories like power cables, data cables, and software CDs. For example, count the number of screws and brackets to ensure there are no missing parts.
Inspect the optical components, such as lenses and mirrors, to make sure they are clean and free from any smudges or damage. Even a small scratch on an optical lens can affect the quality of the laser beam and the marking results. If you notice any issues during the inspection, contact the supplier immediately to resolve the problem before proceeding with the setup.
The laser marking machine requires a suitable space and environment to operate effectively and safely.
Space: The machine should be placed on a stable and flat workbench. The workbench should be large enough to accommodate the machine and any additional equipment, such as a computer for controlling the machine. There should be at least 50 - 100 cm of free space around the machine to allow for easy access to all sides for maintenance, cable management, and loading and unloading of workpieces. For larger industrial - grade laser marking machines, more space may be required.
Ventilation: Adequate ventilation is crucial. Laser marking can produce fumes, especially when marking certain materials like plastics. Install the machine in a well - ventilated area, preferably near an exhaust fan or a ventilation duct. If the work area does not have natural ventilation, consider using a local exhaust system to remove the fumes generated during the marking process. This helps to protect the operator's health and prevent the accumulation of harmful substances in the air.
Temperature and Humidity: The ideal operating temperature for most laser marking machines ranges from 15°C to 30°C. Extreme temperatures can affect the performance of the laser source, the electronic components, and the optical parts. High temperatures may cause the laser source to overheat, reducing its lifespan and output power. Low temperatures can lead to condensation on the optical components, which can damage them.
The relative humidity should be maintained between 20% and 70%. Excessive humidity can cause corrosion of metal parts and short - circuiting of electrical components. On the other hand, very low humidity can increase the risk of static electricity, which can also damage the sensitive electronic components in the machine.
Avoid placing the laser marking machine in areas with strong electromagnetic interference, such as near large electrical motors, transformers, or radio transmitters. Electromagnetic interference can disrupt the operation of the control system and affect the accuracy of the marking.
Many laser marking machines are equipped with air - cooled systems to dissipate the heat generated during operation. The air - cooled system works on the principle of forced air circulation. A fan inside the machine draws in cool air from the surrounding environment and blows it over the heat - generating components, such as the laser source. As the air passes over these components, it absorbs the heat and then expels the heated air out of the machine.
When using an air - cooled laser marking machine, there are several important points to note:
• Regular Cleaning: The air - intake and exhaust vents of the air - cooled system can accumulate dust over time. Regularly clean these vents to ensure unobstructed air flow. You can use a soft brush or a compressed - air canister to remove the dust. If the vents are blocked, the cooling efficiency will be reduced, leading to overheating of the laser source and potential damage to the machine.
• Air Quality: Try to operate the machine in an environment with clean air. High - dust environments can quickly clog the air - cooling system, making it less effective. If the work area is dusty, consider using additional air - filtration devices to improve the air quality around the machine.
• Check the Fan: Periodically check the fan to make sure it is operating properly. A malfunctioning fan will not be able to provide sufficient cooling. Listen for any unusual noises from the fan, such as rattling or grinding sounds, which may indicate a problem. If the fan is not working correctly, replace it immediately to prevent overheating.
Power - On Steps:
1. First, ensure that all the cables, including the power cable, data cable, and any other connections between the components of the laser marking machine, are properly plugged in. Check for any loose connections and make sure the plugs are fully inserted into their respective sockets.
2. Locate the main power switch of the laser marking machine. This is usually a large switch on the side or back of the machine. Turn on the main power switch. You may hear a faint humming sound as the machine starts to power up.
3. If the laser marking machine has a separate controller or computer for operation, turn on this device next. Wait for the operating system to boot up completely. During this process, the machine may perform some self - diagnostic checks, such as checking the status of the laser source, the control board, and the communication interfaces.
4. Once the controller or computer is fully booted, launch the laser marking software. The software will communicate with the machine and display the current status of the machine, such as the laser power level, the temperature of the laser source (if applicable), and any error messages.
5. After the software is launched, check the settings in the software to ensure they are appropriate for your marking task. This includes setting the laser power, speed, frequency, and other parameters according to the material you will be marking and the desired marking effect.
Power - Off Steps:
6. First, stop any ongoing marking operations in the laser marking software. This can usually be done by clicking a "Stop" or "Pause" button in the software interface.
7. Close the laser marking software. Make sure all the processes related to the software are properly terminated.
8. Shut down the controller or computer that is used to operate the laser marking machine. Wait for the computer to complete the shutdown process and turn off completely.
9. Locate the main power switch of the laser marking machine and turn it off. This will cut off the power supply to the machine.
10. If there are any external devices connected to the laser marking machine, such as a cooling system or an exhaust fan, turn off these devices as well.
It is important to follow these power - on and power - off steps carefully to ensure the proper functioning and longevity of the laser marking machine. Incorrect power - on or power - off sequences can cause damage to the electronic components, such as the laser source, the control board, and the power supply unit.
1. Download the Software: First, obtain the software installation package for your laser marking machine. This can usually be downloaded from the official website of the machine's manufacturer. Navigate to the support or downloads section of the website, and look for the software specific to your machine model. Make sure to download the correct version that is compatible with your computer's operating system, whether it's Windows, macOS, or Linux.
2. Run the Installation Program: Locate the downloaded installation file, which is usually in the form of an.exe file for Windows or a.dmg file for macOS. Double - click on the file to start the installation process. In the installation wizard that appears, you will see a series of prompts. Read each step carefully and follow the instructions. For example, you may be asked to accept the software license agreement. Click “I Agree” or “Accept” to continue.
3. Choose Installation Location: The wizard will also ask you to select an installation location on your computer. By default, the software may be set to install in the Program Files folder (on Windows) or the Applications folder (on macOS). If you want to install it in a different location, click “Browse” and select the desired directory. However, it's generally recommended to use the default location unless you have a specific reason not to, as it can simplify future software updates and troubleshooting.
4. Complete the Installation: After selecting the installation location, click “Install” to begin the actual installation process. The progress bar will show the installation status. Depending on the complexity of the software and the speed of your computer, this process may take a few minutes. Once the installation is complete, you will usually see a “Finish” button. Click it to exit the installation wizard.
1. Identify the Driver: Most laser marking machines require drivers to establish communication between the machine and the computer. The driver is usually provided with the machine, either on a CD - ROM or as a separate download from the manufacturer's website. Locate the driver installation file. It may be in a compressed folder (such as a.zip file). If so, extract the files to a new folder on your computer.
2. Install the Driver: For Windows users, open Device Manager. You can do this by right - clicking on the Start menu and selecting “Device Manager”. In Device Manager, look for any devices with a yellow exclamation mark or a question mark, which may indicate an unrecognized device (your laser marking machine). Right - click on the device and select “Update Driver”. Then, choose “Browse my computer for drivers” and navigate to the folder where you extracted the driver files. Select the appropriate driver file (usually with a.inf extension) and follow the on - screen instructions to install it.
For macOS users, if the driver is in a.dmg format, double - click on the.dmg file to mount it. Then, open the mounted volume and run the driver installation program. Follow the prompts in the installation wizard, which may include agreeing to a license agreement and entering your administrator password.
3. Check Driver Installation: After the installation, in Windows, check Device Manager again to ensure that the laser marking machine is listed without any errors. In macOS, you can check the System Information utility. Navigate to “About This Mac” > “System Report” and look for the laser marking machine under the appropriate category (such as “USB” or “Network”). If the driver is installed correctly, the machine should be recognized and ready to communicate with the computer.
1. Toolbar: The toolbar is usually located at the top of the software interface. It contains a set of icons that provide quick access to common functions. For example, there is usually an “Open” icon that allows you to open existing design files. This could be vector - based design files (such as.svg or.dxf) or bitmap images (like.jpg or.png). The “Save” and “Save As” icons are used to save your current design. You can save your work in the native format of the laser marking software, which often preserves all the settings and elements of your design for future editing.
There may also be an “Edit” toolbar with functions like “Undo” and “Redo” to reverse or repeat actions, and a “Print” - like icon (although it's for laser marking, not traditional printing) to initiate the marking process. Additionally, some toolbars may have icons for basic geometric shape creation, such as circles, rectangles, and lines, which are useful for creating simple marking patterns.
2. Drawing Area: The drawing area is the central part of the interface, where you create and preview your marking designs. This is where you can import images, draw shapes, and arrange text. When you import an image, it will appear in the drawing area, and you can resize, rotate, and position it as needed. You can also use the drawing tools in the toolbar to create custom shapes. For example, if you want to mark a company logo on a product, you can either import the logo image or recreate it using the shape - drawing tools in the drawing area.
3. Parameter adjustment area: The parameter adjustment area is where you set the specific parameters for the laser marking process. These parameters include laser power, speed, frequency, and marking depth. The laser power determines the intensity of the laser beam. Higher power settings are generally used for marking deeper on materials or for materials that are more difficult to mark, such as metals. The speed controls how fast the laser beam moves across the material. A slower speed may result in a deeper and more detailed mark, while a faster speed can increase productivity but may reduce the marking depth.
The frequency refers to the number of times the laser pulses per second. Different materials may respond better to different frequency settings. Marking depth is another crucial parameter, and it can often be adjusted either directly or indirectly through other parameters like power and speed. For example, in some software, increasing the power and decreasing the speed while keeping the frequency constant may result in a deeper mark.
4. Marking control area: The marking control area contains buttons and options to start, stop, and pause the marking process. There may also be options to set the origin point of the marking. The origin point is the starting position from which the laser begins to mark. You can choose to set it at the center of the work area, a corner, or any other specific location depending on your design requirements.
Some marking control areas also have options for setting the marking sequence. If you have a complex design with multiple elements, you can specify the order in which the laser marks these elements. This can be important for achieving the desired visual effect or for ensuring that the marking process is efficient.
5. Status Bar: The status bar is usually located at the bottom of the software interface. It provides real - time information about the software and the marking process. For example, it may show the progress of the current marking job, indicating how much of the design has been marked. It can also display error messages if there are any issues during the marking process, such as a communication problem with the laser marking machine or an incorrect parameter setting. Additionally, the status bar may show the current settings of important parameters like laser power and speed, allowing you to quickly check and confirm them.
Before starting the marking process, you need to import the files that contain the content you want to mark. Laser marking software typically supports a variety of file formats.
• Image Files: For bitmap images, common formats include BMP (Bitmap), JPEG (Joint Photographic Experts Group), and PNG (Portable Network Graphics). BMP is an uncompressed format, which is suitable for simple and high - resolution images. JPEG is highly compressed, making it ideal for photos but may result in some loss of quality. PNG supports transparency, which is useful when you want to mark images with transparent backgrounds. For example, if you want to mark a company logo with a transparent background on a product, a PNG file would be a good choice.
• Vector Files: Vector - based files are also widely supported. DXF (Drawing Exchange Format) is a common format used in CAD (Computer - Aided Design) software. It can accurately represent 2D and 3D geometric shapes, lines, and text. Another popular vector format is AI (Adobe Illustrator). AI files are great for complex graphic designs and can be scaled infinitely without losing quality. If you have a detailed logo designed in Adobe Illustrator, you can save it as an AI file and import it into the laser marking software.
• Text Files: TXT (Text) files are supported for simple text - only markings. You can directly input text into the software, but if you have a large amount of text or a pre - formatted text document, importing a TXT file can be more convenient. For example, if you want to mark a long serial number or a set of instructions, you can save them in a TXT file first and then import it.
To import a file, in the laser marking software, usually, you click on the “File” menu and select “Import” or a similar option. Then, navigate to the location where your file is saved on your computer, select the file, and click “Open”. The file will then be loaded into the software's drawing area, ready for further editing and marking.
• 2D Text: To create 2D text, first, select the “Text” tool in the software toolbar. A text box will appear in the drawing area. Click inside the text box and start typing your desired text. You can then adjust various parameters such as font type, size, color (although the color is mainly for visual display in the software and may not directly affect the marking color on the material), and alignment (left - aligned, center - aligned, right - aligned). For example, if you want to mark a product name on a plastic item, you can choose a clear and legible font like Arial, set an appropriate size (e.g., 10 - 12 points for a small - sized product) and center - align it for a neat appearance.
• Barcodes: To create a barcode, look for the “Barcode” tool in the software. There are different types of barcodes, such as Code 39, Code 128, QR Code, etc. Select the type of barcode you need. Then, input the data that the barcode should represent. For example, if it's a product - tracking barcode, you would input the unique product ID number. You can also adjust the size and orientation of the barcode. A larger barcode may be more easily scanned but may take up more space on the material.
• Serial Numbers: Creating a serial number involves using the “Serial Number” or “Variable Text” function in the software. You can define the starting number, the increment (e.g., increment by 1 for consecutive serial numbers), and the number of digits. For example, if you are marking a batch of 100 products with serial numbers starting from 0001, you set the starting number as 0001, the increment as 1, and the number of digits as 4. This way, each product will be marked with a unique serial number in sequence.
• Date and Time: To mark the date and time, find the “Date/Time” tool. You can choose the format of the date and time display, such as “YYYY - MM - DD HH:MM:SS” or a more abbreviated format like “MM/DD/YY”. The software will automatically insert the current date and time when you start the marking process. This is useful for marking the production date on products or the time of a specific operation.
• filling: The fill tool is used to fill an enclosed area with a specific pattern or color (again, the color in the software is mainly for visualization). For example, if you have a circular shape that you want to mark on a metal surface, you can use the fill tool to fill it with a solid pattern. In the software, select the shape you want to fill, then click on the fill tool. You can choose from different fill patterns like solid, cross - hatch, or a custom - defined pattern. A solid fill is suitable for creating a solid - colored area, while a cross - hatch fill can be used to add a textured look.
• Sizing: To resize an object (such as an imported image, a text box, or a drawn shape), you can use the size - adjustment handles. When you select an object, small squares or circles (handles) will appear around its edges. Drag these handles to increase or decrease the size of the object. You can also maintain the aspect ratio (the proportion of width to height) while resizing. For example, if you have an imported logo that is too large for the marking area on a product, you can use the size - adjustment handles to scale it down proportionally.
• Entity drawing: Most laser marking software provides tools for drawing basic geometric shapes such as rectangles, circles, and lines. To draw a rectangle, select the “Rectangle” tool, then click and drag in the drawing area to create the rectangle. You can adjust its length, width, and position. Circles can be drawn in a similar way. For example, if you want to create a decorative circular pattern on a wooden item, you can use the circle - drawing tool. Lines are useful for creating borders or dividing marks. Select the “Line” tool, click to define the starting point, and then drag to the ending point to create a line. You can also set the line thickness and style (e.g., solid, dashed).
• Entity drawing: To duplicate an object, first select the object you want to copy. In most software, you can then use the “Copy” command (usually found in the “Edit” menu or by using the keyboard shortcut Ctrl + C on Windows or Command + C on macOS). After that, use the “Paste” command (Ctrl + V on Windows or Command + V on macOS) to paste the copied object. The new object will be placed at the same position as the original one initially, but you can then move it to a different location. For example, if you have a logo that you want to mark in multiple places on a product, you can copy the logo object and paste it in the desired locations.
• Array replication: Array replication allows you to create multiple copies of an object in a regular pattern. Select the object you want to replicate, then look for the “Array” or “Pattern” function in the software. You can define the number of copies in the X - direction and Y - direction, as well as the spacing between the copies. For example, if you want to create a grid of small circular marks on a metal plate, you can use the array replication function. Set the number of copies in the X - direction as 5, the number of copies in the Y - direction as 5, and the spacing between the circles as 5 mm. This will create a 5x5 grid of circles with a 5 - mm gap between each circle.
• Laser power:Laser power has a significant impact on the marking effect. Higher laser power means more energy is delivered to the material per unit time. For materials like metals, a higher power (usually 60% - 90% of the maximum power of the laser marking machine) is often required to achieve a deep and clear mark. For example, when marking stainless steel, a power setting of 70% - 80% can be effective. However, for heat - sensitive materials such as plastics, a lower power (30% - 60%) is used to prevent melting or deformation. If the power is too high for plastics, it may cause the plastic to char or warp.
• Marking speed: The marking speed determines how quickly the laser beam moves across the material. A slower speed allows the laser to deliver more energy to a specific area, resulting in a deeper mark. For detailed and high - contrast markings, a slower speed (e.g., 200 - 400 mm/s for metal deep - marking) is suitable. In contrast, for high - volume production where speed is crucial and a shallow mark is acceptable, a faster speed (400 - 1000 mm/s for plastic marking) can be used. But if the speed is too fast, the mark may be too shallow or incomplete.
• Marking depth: The marking depth is influenced by multiple factors including laser power, speed, and the material itself. As mentioned before, increasing the power and decreasing the speed can generally increase the marking depth. Different materials have different optimal marking depths. For instance, on glass, a relatively shallow depth (around 0.1 - 0.3 mm) may be sufficient for clear identification marks, while on metal parts that require long - term durability and visibility, a deeper depth (0.5 - 1 mm or more) might be needed.
Once you have adjusted all the parameters and finalized the marking content, it's time to start the marking process.
1. First, make sure that the workpiece is properly positioned on the worktable of the laser marking machine. Use fixtures or clamps if necessary to hold the workpiece firmly in place. This ensures that the marking is applied accurately at the desired location on the workpiece.
2. In the laser marking software, click the “Start” or “Mark” button. The laser marking machine will then begin to operate according to the settings you have configured.
3. As the marking process starts, closely observe the marking effect in real - time. You can monitor the progress through the viewing window of the laser marking machine (if available) or the live preview in the software (if supported). If you notice any issues, such as the mark being too light, too deep, or not in the correct position, you can pause the marking process immediately.
4. If adjustments are needed, stop the marking process completely. Then, go back to the software to adjust the relevant parameters, such as laser power, speed, or the position of the marking elements. After making the adjustments, you can restart the marking process on the same workpiece or a new one.
During the operation of the laser marking machine, you may encounter some common issues. Here are the troubleshooting methods for them:
• Prompt that the software is already running:Sometimes, when you try to launch the laser marking software, you may receive a prompt indicating that the software is already running. This can be caused by a software glitch where the previous instance of the software did not close properly. To solve this, open the Task Manager (Ctrl + Shift + Esc on Windows). In the Task Manager, look for any processes related to the laser marking software. Right - click on these processes and select “End Task”. Then, try to launch the software again.
• Software crashes or becomes unresponsive: If the software crashes or becomes unresponsive during operation, first, check if there are any error messages displayed. These messages can provide clues about the problem. If the software is crashing frequently, it may be due to an issue with the software version, system compatibility, or a problem with the installed drivers. Try updating the software to the latest version. You can usually find the update on the manufacturer's official website. If the problem persists, check the compatibility of the software with your computer's operating system. You may need to run the software in compatibility mode. For example, if you are using Windows 10 and the software was designed for an earlier version of Windows, right - click on the software's shortcut, select “Properties”, go to the “Compatibility” tab, and select an earlier Windows version from the dropdown list. Also, update or reinstall the device drivers for the laser marking machine as described in the “Driver Installation” section.
◦ •Incorrect marking size:
◦ Field lens parameter setting error:Different field lenses (F - Theta lenses) have different marking ranges. If the parameters of the field lens set in the software do not match the actual lens used, it will lead to inconsistent display and actual marking sizes. To fix this, in the marking software, check and ensure that the focal length and model of the field lens are consistent with the actually installed lens. Usually, you can find this setting in the device parameters or configuration menu of the software, and modify it to the correct focal length value.
◦ Marking software calibration problem:The laser marking software usually needs to be calibrated for sizing when it is first used. If the calibration is inaccurate or not performed, there may be errors between the size displayed by the software and the actual printed size. Solve this by using the calibration function in the marking software to re - calibrate the size. Usually, the marking software provides a “Calibration” tool. You can compare the actual marking size with the size set in the software and then input the actually measured size to calibrate the software.
◦ Stepper motor or galvanometer setting error: The laser marking machine relies on the stepper motor or galvanometer system to control the movement path of the laser beam. If the movement accuracy settings of the stepper motor or galvanometer are improper, the printed size may not match. In the marking software, check and adjust the offset and scaling factor of the galvanometer to ensure that its movement accuracy is consistent with the display parameters of the software. Usually, these settings can be adjusted in the “X - axis, Y - axis” galvanometer parameters of the software.
◦ •Marking position deviation:
◦ Loose mechanical parts: Over time, the mechanical components of the laser marking machine may become loose. Check the machine's mechanical structure, including the worktable, the mounting of the marking head, and the connection parts. Tighten any loose screws or bolts. For example, if the marking head is not firmly fixed, it may move slightly during the marking process, causing the marking position to shift.
◦ Software setup error:In the laser marking software, check the settings related to the marking position, such as the origin point setting, the coordinate system settings, and any offset values. If these settings are incorrect, it can lead to marking position errors. Make sure that the origin point is set correctly according to your marking requirements. For example, if you want to mark in the center of the workpiece, the origin point should be set accordingly.
◦ •The device cannot be started:
◦ Power Issues: First, check if the power cable is properly connected to the machine and the power outlet. Ensure that the power switch on the machine is in the “On” position. Also, check if the power outlet is working by plugging in another device. If the power cable is damaged, it should be replaced immediately.
◦ Control system failure: The control system of the laser marking machine is crucial for its operation. If there is a problem with the control board or other components of the control system, the machine may not start. Check if there are any visible signs of damage on the control board, such as burnt components or loose connections. If you are not sure how to check the control system, contact the manufacturer's technical support for assistance.
◦ •Laser beam is unstable or has no output:
◦ Laser aging or damage:If the laser tube has been used for a long time, it may age or become damaged, resulting in unstable or no laser output. Check the usage time of the laser tube. If it has exceeded its expected lifespan, it may need to be replaced. You can contact the manufacturer or a professional supplier to purchase a compatible laser tube.
◦ Cooling system failure:The laser source in the marking machine generates heat during operation, and the cooling system is used to dissipate this heat. If the cooling system fails, the laser source may overheat, causing unstable or no laser output. Check if the cooling water is circulating normally, if the water level in the cooling tank is sufficient, and if the cooling pump is working properly. If there is a blockage in the cooling pipes, it should be cleared to ensure normal water flow.
Daily maintenance is crucial for the long - term, stable operation of the laser marking machine and for ensuring high - quality marking results. Here are some daily maintenance suggestions and methods:
• External Surface: Regularly clean the external surface of the laser marking machine. Use a clean, soft cloth to wipe away dust, dirt, and any residues that may have accumulated. Avoid using abrasive cleaners as they can scratch the surface of the machine. For example, if there are oil stains on the surface from the workpiece during the marking process, a cloth slightly dampened with a mild detergent can be used to gently remove them, followed by a dry - cloth wipe to prevent water - related damage.
• Optical Components: The optical components, such as lenses and mirrors, need to be kept clean. Even a small amount of dust or smudge on these components can affect the quality of the laser beam and the marking effect. Use a clean, lint - free, and soft - bristle brush to gently remove dust from the surface of the lenses and mirrors. For more stubborn dirt, you can use a piece of lens - cleaning paper dipped in a small amount of pure alcohol (ethanol) to carefully wipe the surface. Make sure to wipe from the center to the edge in a circular motion, and be very gentle to avoid scratching the optical coating on the components.
• Mechanical Components: Check the fastening of all mechanical components. Over time, vibrations during operation can cause screws, nuts, and bolts to loosen. For example, the screws that hold the marking head in place, the bolts on the worktable, and the connections of the moving parts like the linear guides. Use a wrench or a screwdriver to ensure that all these fasteners are tightened to the appropriate torque. If any loose components are found, tighten them immediately to prevent misalignment during the marking process, which could lead to inaccurate marking results.
• Electrical Connections: Inspect the electrical connections, including power cables, data cables, and any other electrical connectors. Ensure that they are firmly plugged in and there are no loose or frayed wires. Loose electrical connections can cause power - supply issues, communication problems between the machine and the control system, or even electrical hazards. If you notice any signs of damage or looseness in the electrical connections, replace the damaged parts or re - connect them properly.
• Temperature and Humidity: Keep an eye on the environmental temperature and humidity around the laser marking machine. As mentioned before, the ideal operating temperature range is usually from 15°C to 30°C, and the relative humidity should be between 20% and 70%. Use a thermometer and a hygrometer to monitor these conditions. If the temperature is too high, consider using additional cooling measures, such as an air - conditioner or a more powerful cooling fan for the machine. In case of high humidity, a dehumidifier can be used to reduce the moisture in the air. Excessive humidity can lead to corrosion of metal parts and short - circuiting of electrical components, while extreme temperatures can affect the performance of the laser source and other sensitive parts.
• Dust and Debris: Try to keep the work area around the laser marking machine free of dust and debris. High - dust environments can quickly accumulate dust inside the machine, especially in the air - cooling ducts (if it is an air - cooled machine), on the optical components, and in the electrical components. This can reduce the cooling efficiency, affect the laser beam quality, and cause electrical malfunctions. Regularly clean the work area using a vacuum cleaner or a broom. If possible, install dust - proof enclosures or filters around the machine to minimize the entry of dust.
In conclusion, operating a laser marking machine requires a combination of careful setup, proper software operation, and a clear understanding of the marking process. By following the safety guidelines, you can ensure a hazard - free working environment. The step - by - step procedures for machine setup, software installation, and marking operations we've covered provide a solid foundation for using a laser marking machine effectively.
Remember, troubleshooting skills are equally important. Being able to identify and solve common issues, whether they are software - related, marking - related, or equipment - related, will save you time and ensure the smooth progress of your work. Regular daily maintenance, including cleaning the equipment, checking component fastening, and monitoring environmental conditions, is essential for the long - term performance and lifespan of the laser marking machine.
Don't be afraid to experiment with different marking parameters, files, and materials. Each project may have unique requirements, and through continuous exploration and practice, you can fully unlock the potential of the laser marking machine and achieve high - quality, personalized marking results. Whether you are using it for industrial production or creative DIY projects, the laser marking machine can be a powerful tool in your hands.
